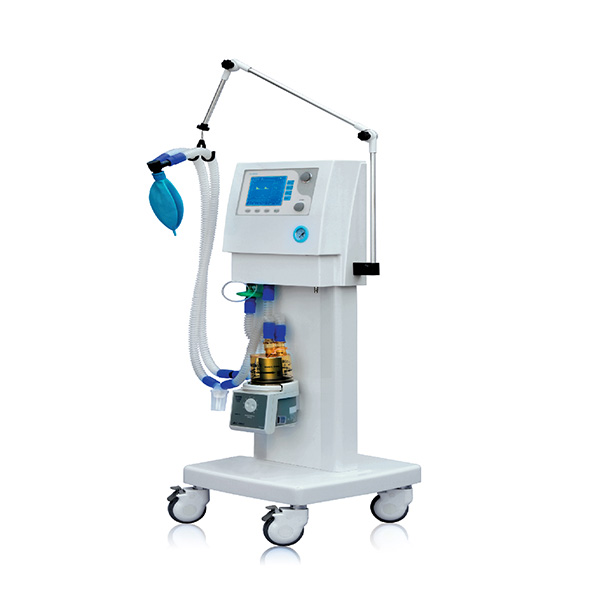

2000B1 Ventilator(vertical type)

2000B1 Ventilator(vertical type)

Add Time: 2017-09-12 12:25:02



2000B1 is a multi-functional Ventilator, it is applicable for children and adults in sickroom, ICU or of emergency.


Display mode                  High-definition 5.7 LCD screen display

Ventilation mode               IPPV, SIPPV, SIMV, MANUAL

Ventilation  function         PEEP,SIGH, IRV

Ventilation parameters           Tidal volume         501500ml

Rate                 299bpm

SIMV rate            220bpm

I:E                  2:11:8

Inspiratory trigger pressure -1.02.0 kPa

PEEP                02.0 kPa

Pressure range        1.06.0 kPa

SIGH          1.5 times the inspiratory time

Parameters for ventilation monitoring  tidal volume, minute ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, pressure - time waveform, flow rate - time waveform, PEEP, inspiratory trigger pressure

Security Alarm System

Airway pressure alarm           upper limit setting range       1.06.0 kPa

low limit setting range        0.42.0 kPa

Per-minute ventilation volume alarm    upper limit setting range       3.030L/min

low limit setting range        1.010L/min

Sustained high-pressure alarm     it will give alarm when stress have consistently

been higher than 2.5 kPa

Suffocation alarm               it will give sound and light alarm if there is no

tidal volume input for 15 seconds

Power alarm

 Power                          AC 220V±10%     50Hz±1Hz

                               UPS, Storage battery
